Profiling Gas Flame Cutting Machine For Metal Thick Sheet Cutting

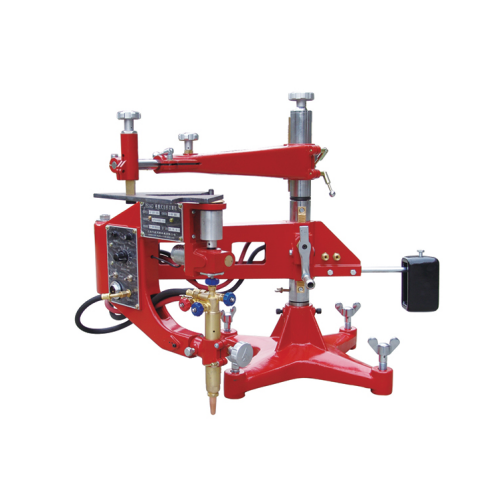

Introduction

“HK-54D”profiling gas cutter is a kind of efficient and economic product. It is designed well and made of A-alloy. It can cut many shapes of pieces according to sample plate. The accuracy of cutting surface is good and the quality is high. The body is very small. So, it not only suits for company, but also suits for outdoor.

1.This machine is the most advanced magnetic tracing type gas cutter and ensures opreation ease.As cutting tip is at the center of magnet roller and cutting in close contact with the tracing template,high-precision and eye-pleasing cut faces are ensured.

2.It is made of stainless steel,which greatly reduces the weight.Therefore it is ideal portable machine.

3.It is designed for cutting a heavy workpieces,and the rail length can be adjusted according to workpiece dimension.This design accordingly expands the cutting capacity and the cutting efficiency.

4.Easy to replace the cutting tip

5.The tip can be replaced and cleaned and the flame adjusted easily by merely raising the tracer head.

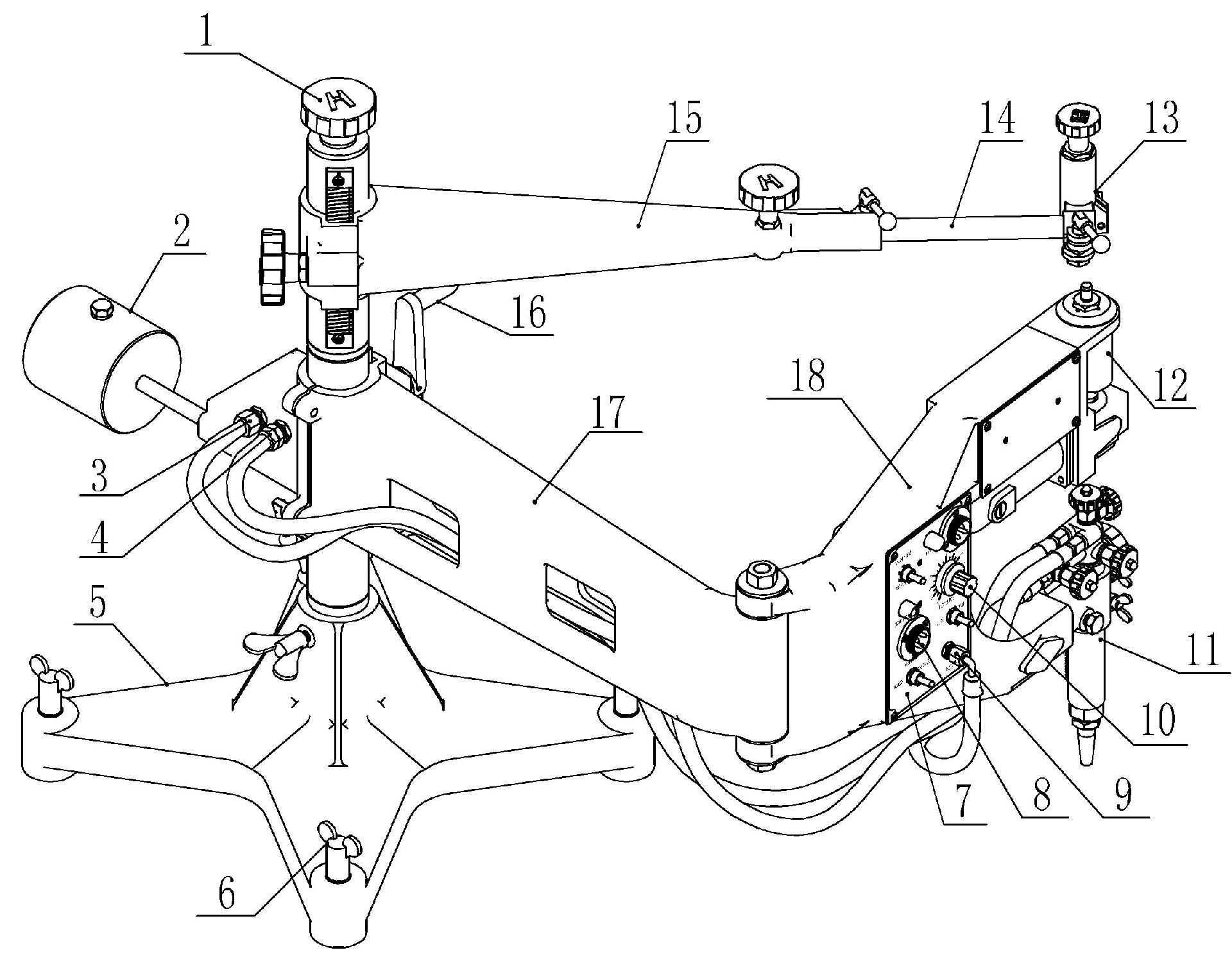

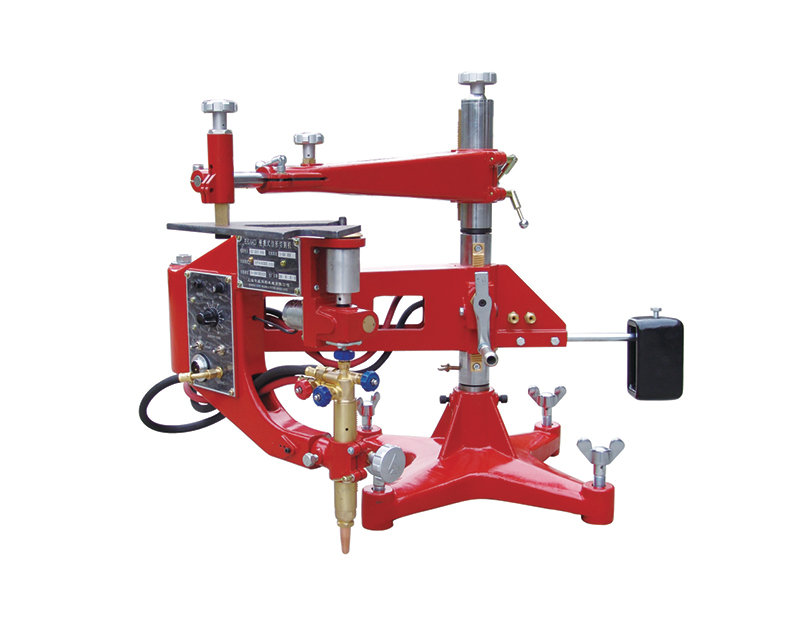

Structure

1.Lift wheel of arm: Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall.

2.heavy

3.oxygen inlet

4.gas inlet

5. base

6. Screw at the bottom: Make the machine horizontal on steel plate.

7.control panel

8. Outlet

9.pressure switch

10. Speed regulating knob：Increase the speed if you revolve it along “0” to “10”.

11. Torch

12.magnetic assembly

13. Frame of sample plate: To fix the sample plate and adjust the height of sample plate.

14.cross rack

15.arm

16.lifting handle of boom

17.boom

18.wishbone
