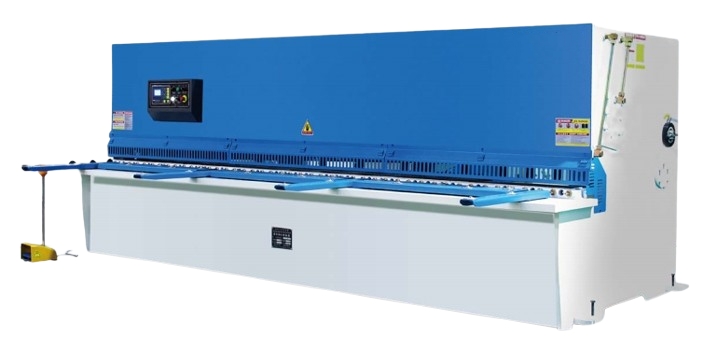

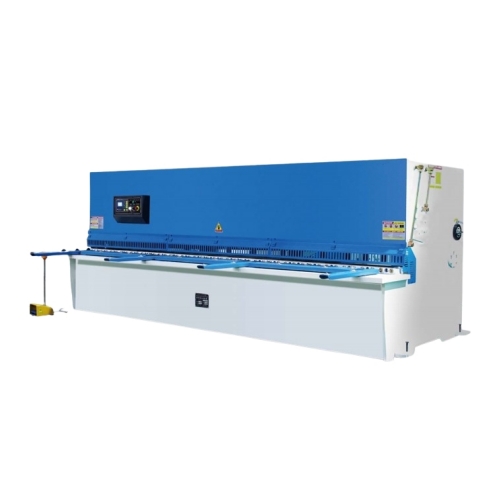

Hydraulic Swing CNC Shearing Machine For Steel Plate Cutting
Features
Steel plate welded structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance.
Edge adjustment signs, adjusts lightly and quickly, continuously variable transmission.
Lighting device on the line, and continuously variable adjustment of upper carrier itinerary.
Fence type safety protection device.
Back gauge adopts E21S CNC, with low noise and high precision.
Technical parameter
Cutting thickness range: 4-40mm, can be customized!
Model | Cutting thickness | Cutting width | Cutting angel | Material intension | Backgauge travel | Cutting times | Power | Dimension |
Unit | mm | mm | ° | KN/cm | mm | T/min | KW | mm |
4x2500 | 4 | 2500 | 1°30’ | ≤450 | 20-600 | 16 | 4 | 3040x1610x1620 |
4x3200 | 4 | 3200 | 1°30’ | ≤450 | 20-600 | 14 | 5.5 | 3840x1610x1620 |
4x4000 | 4 | 4000 | 1°30’ | ≤450 | 20-600 | 10 | 5.5 | 4600x1700x1700 |
4x6000 | 4 | 6000 | 1°30’ | ≤450 | 20-600 | 8 | 7.5 | 6460x2100x3200 |
6x2500 | 6 | 2500 | 1°30’ | ≤450 | 20-600 | 14 | 7.5 | 3040x1610x1620 |
6x3200 | 6 | 3200 | 1°30’ | ≤450 | 20-600 | 12 | 7.5 | 3840x1610x1620 |
6x4000 | 6 | 4000 | 1°30’ | ≤450 | 20-600 | 8 | 7.5 | 4620x1750x1700 |
6x5000 | 6 | 5000 | 1°30’ | ≤450 | 20-600 | 6 | 11 | 5400x1800x1900 |
6x6000 | 6 | 6000 | 1°30’ | ≤450 | 20-600 | 5 | 11 | 6480x2100x2300 |
