Laboratory Continuous Electrode Slitting Machine With Roll to Roll System

Introduction

Two or more continuous slitting process of roll-shaped material is adopted. The equipment is equipped with a precision knife holder, which can realize extremely high-precision foil slitting, and is widely used in lithium battery, metal foil, optical film and other functional film industries.

Main features

*Ultra-fine tungsten steel blade, good cutting quality and long service life;

*The slitting width has high precision, and the finished product has no burrs, waves, and indentations;

*The amount of knife can be adjusted, and the ratio of knife speed to material linear speed can be adjusted;

*By adjusting the angle of feeding and discharging materials, it can be adapted to the slitting of materials of different materials and thickness values;

*Single vertical board structure, independent knife holder, equipped with dust removal device;

*Upper and lower round knife structure, the slitting width can be adjusted by replacing the spacer;

*The winding tension is automatically controlled, and the upper and lower shafts are independently adjustable within 50N;

*PLC control, HMI operation, convenient and easy to use;

Technical parameters

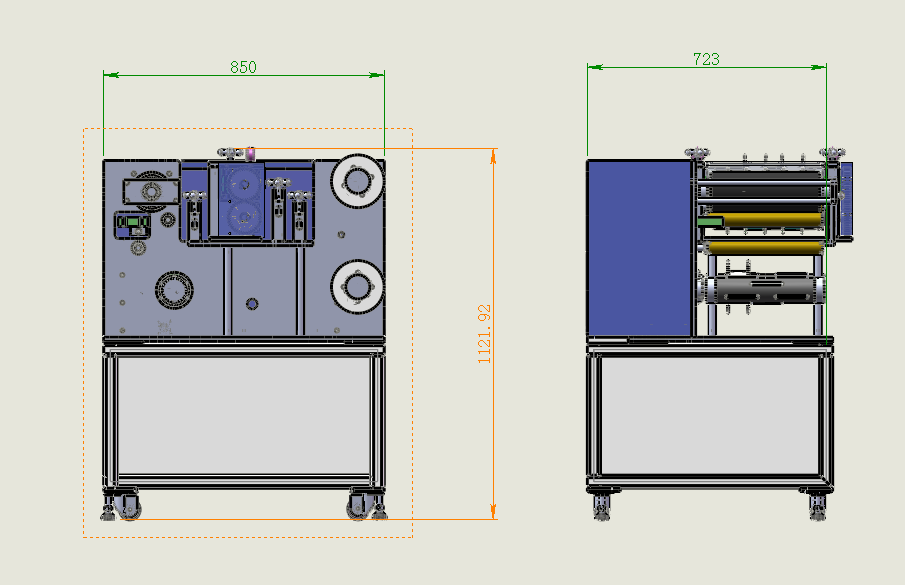

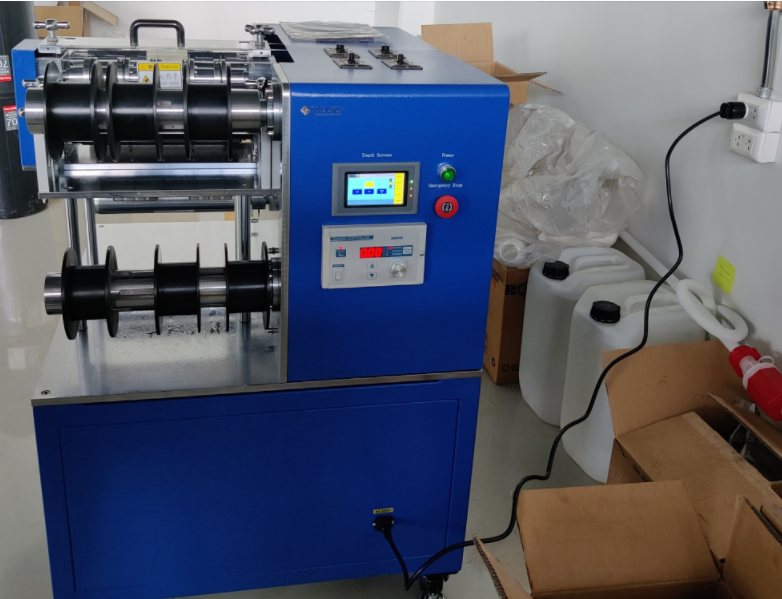

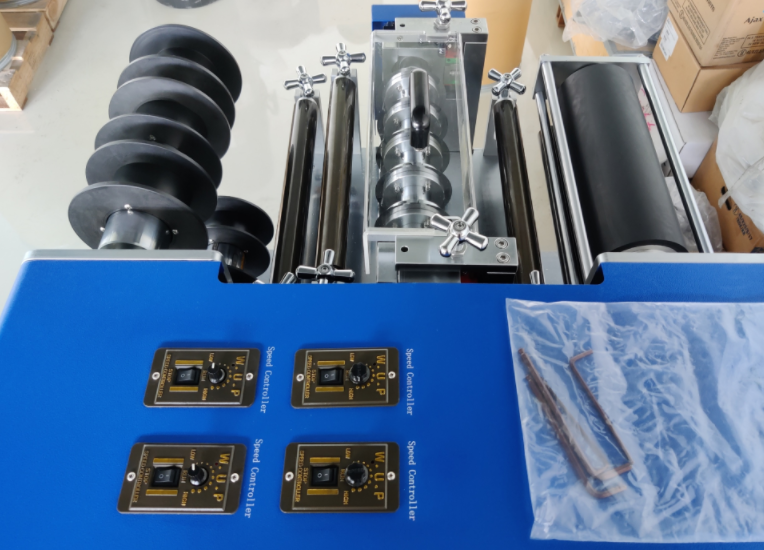

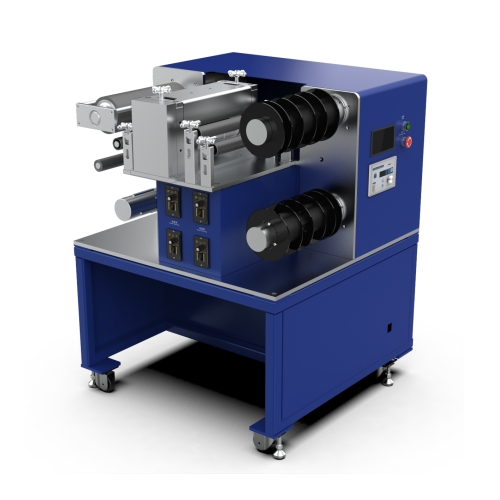

Picture for reference
