Laboratory Cylindrical Cell Pouch Cell Electrode Slitting Machine With Fixed Slitting Width

1.Product brief introduction：

The machine used for electrode roll slitting after press, it adopts no clearance knife for slitting, slice edge neat, ensure dimensional accuracy.

2.Main feature:

*Adjustable guide device for feed positioning;

*Using electric rolling cutting strip；

*The meshing amount can be adjusted；

*Upper and lower blades with the same speed, synchronous transmission；

*Plexiglas protection device is arranged at the hob for safe operation；

*Open hob fixed mode, easy to disassemble the hob;

3.Technical parameter:

The machine is consist of up and down cutter, holder,  Inlet and outlet positioning plate, gear,  reducer, motor.etc.

*Cutter knife type：Up and down round knife

*Width：10～300mm

*Standard cutter：56mm,56mm,56mm，58mm,58mm.58mm.（can be customized）

*Suitable thickness：50-400μm battery electrode

*Up and Down gap：Handwheel adjusted 0.2-0.4mm

*Cutter diameter：85mm

*Cutter material：Ultra-fine grained alloy steel

*Slitting speed：<2m/min，adjustable

*Voltage：AC220V/50Hz (AC110V/60HZ)

*Power：0.5KW

*Dimension：L 90×W 105×H 30（cm）

*Weight：about 60KG；

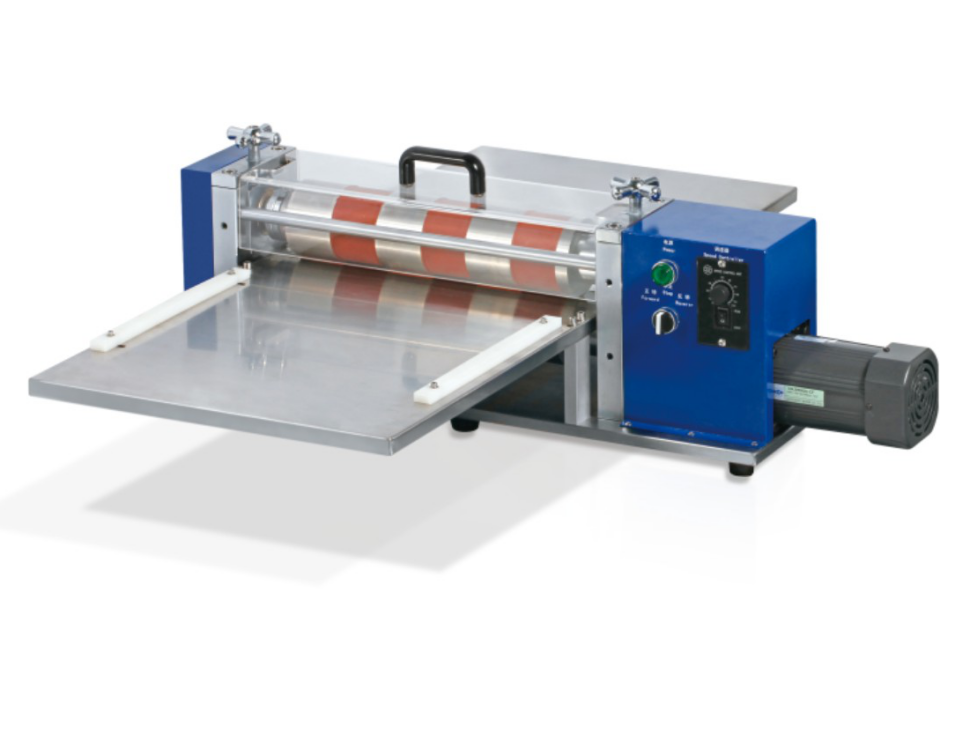

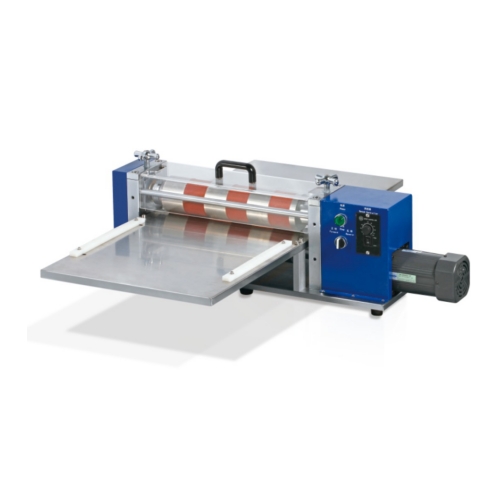

 Picture for reference
