Laboratory Semi-automatic Pouch Cell Electrode Die Cutting Machine With Optional Cutting Die

Product Introduction ·

This product is suitable for die-cutting of positive and negative electrode pieces of batteries.

Main Features ·

* Infrared positioning device, accurate and convenient pole plate positioning die cutting;

* Easy and fast to replace the tool die;

* Long die life, normal use ≥ 30,000 times;

* No quality defects such as rough edges, falling powder and indentation;

* Between manual and automatic, high efficiency 800 ~ 2000 pieces/hour;

 (1 ~ 8 pieces can be punched each time according to the chip size, the standard is 2 pieces)

* Adopts four guide column structure, sliding smoothly up and down with high precision;

* The equipment inlet has a safety protection light curtain, the operation is very safe;

* Exquisite appearance, sheet metal using three-dimensional geometric design, simple and beautiful;

* Easy to operate, safe and reliable, small size;

How to use ·

Put the electrode sheet into the die cutting position, and then press the foot valve, the booster cylinder drives the die cutting tool group down to automatically cut the pole piece into shape, and the electrode sheet is taken out.

Technical parameters

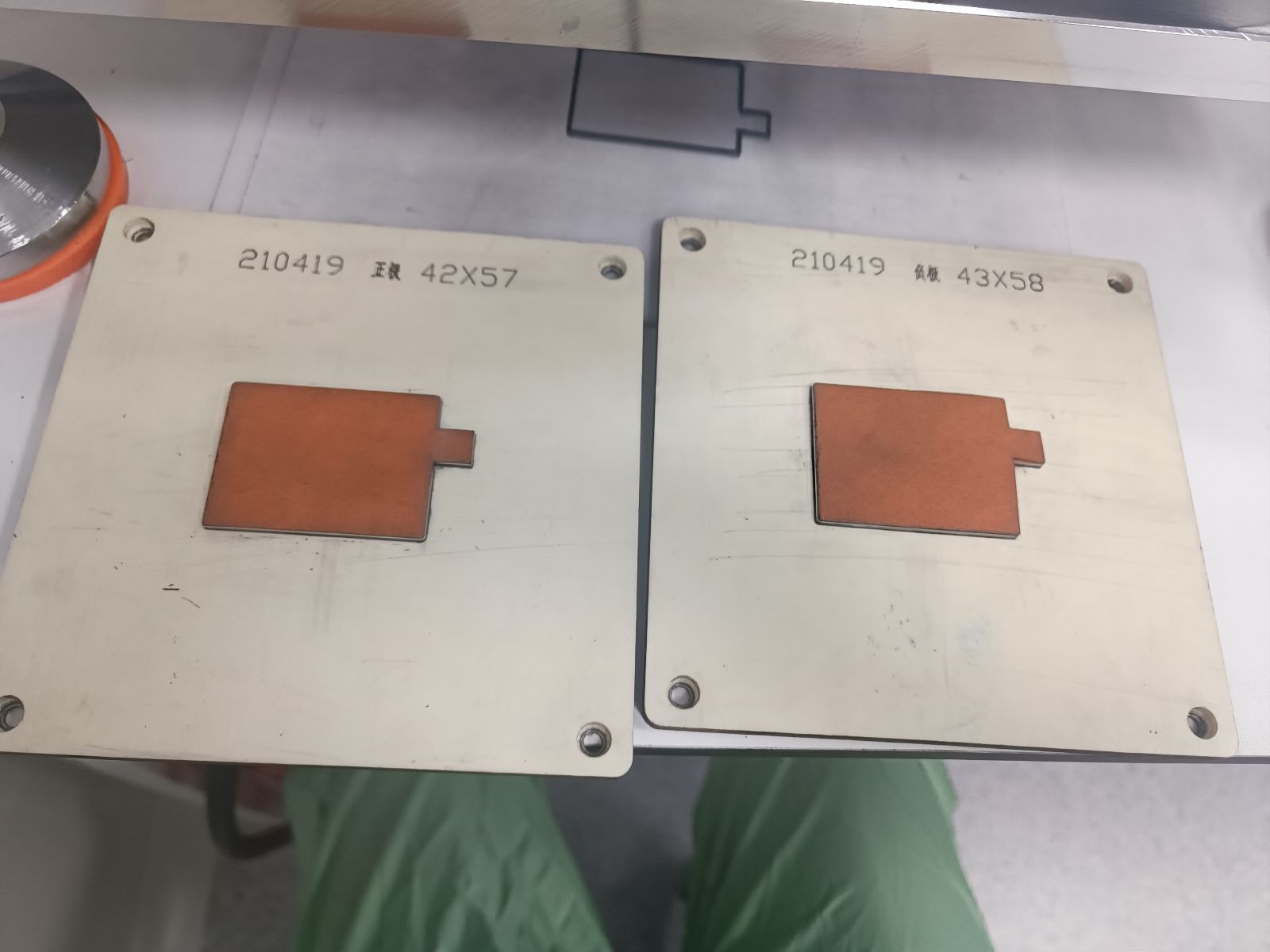

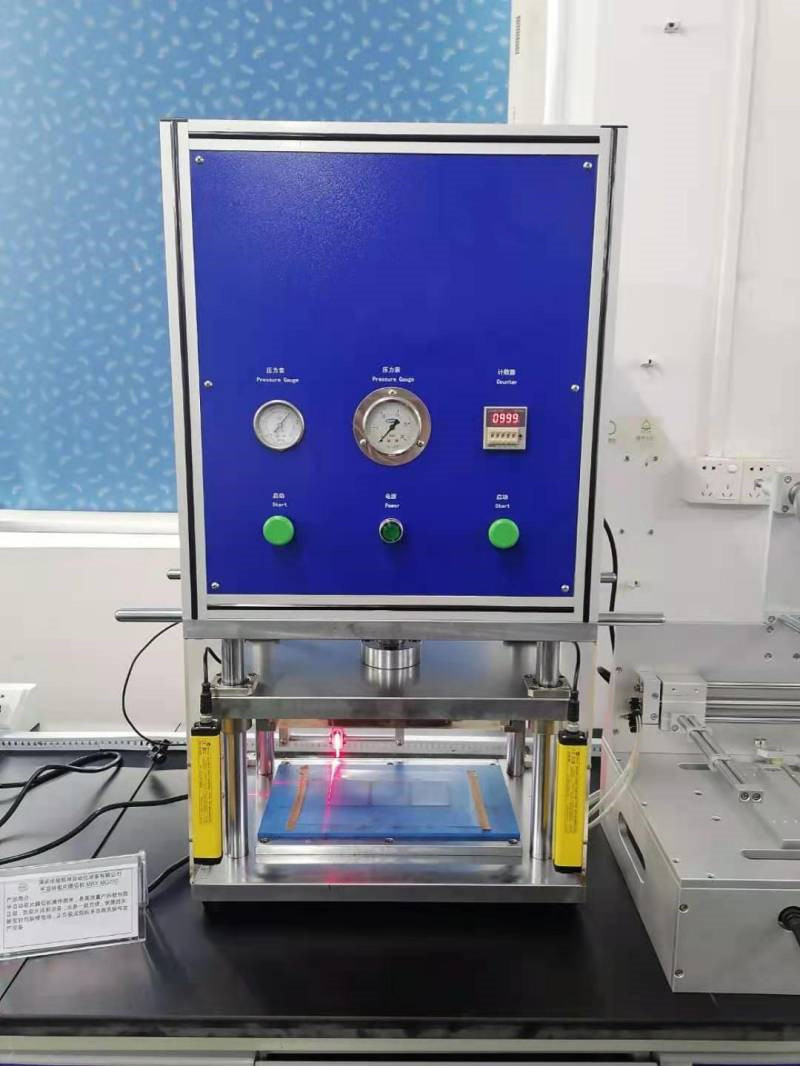

Picture for reference
