Paper/Plastic Film Universal Slitting Machine With Automatic Feeding System
Introduction
The general-purpose slitting machine (1000) is a machine used to cut large rolls of materials into small rolls or small pieces. It is usually used for cutting materials such as paper, plastic film, metal foil and fabric. The working principle of a slitting machine is to cut materials into the required size and shape through blades or cutting wheels. Slitting machines usually have functions such as automatic feeding, automatic cutting and automatic winding, which can greatly improve production efficiency and reduce manual operation. Slitting machines are widely used in packaging, printing, manufacturing and other fields.
Technical parameters
Width of the master roll | 750mm/1000mm in max. |
Outer diameter of the mother roll | 650mm in max. |
Weight of the master roll | 350kgs in max. |
Core diameter | 3" or 6" |
Installation of master coil | Shaftless |
Finished product width | The minimum size of the square knife is 10mm |
Outer diameter of the finished product | 135mm/180mm/200mm in max. (Optional) |
Diameter of the finished core tube | 1" |
Working speed | 300 meters per minute (optional) |
Power | 6KW |
Voltage | 380V 3phase 50HZ |
Air pressure | 0.6-0.8 mpa |
knife | Square knife |
Machine weight | About 2,000 kilograms |

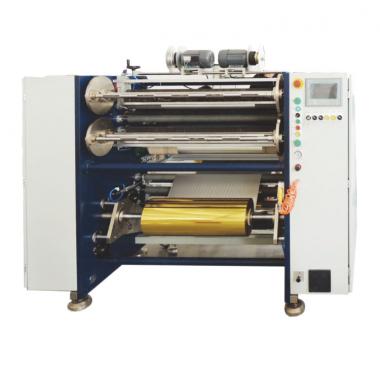

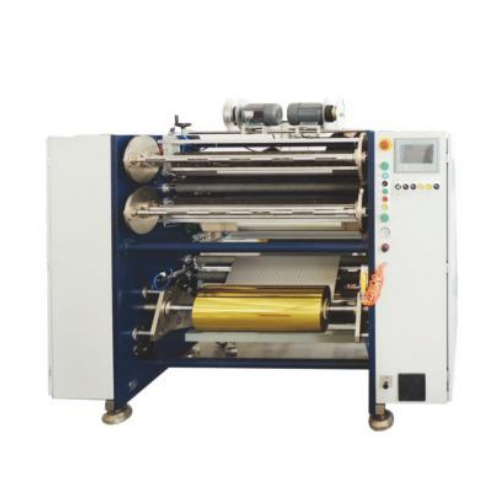

Picture for reference
