Universal Cu/Stainless Steel Foil Slitting Machine
Introduction
The general-purpose slitting machine (1350) is a machine used to cut large rolls of materials into small rolls or small pieces. It is usually used for cutting materials such as paper, plastic film, metal foil and fabric. The working principle of a slitting machine is to cut materials into the required size and shape through blades or cutting wheels. Slitting machines usually have functions such as automatic feeding, automatic cutting and automatic winding, which can greatly improve production efficiency and reduce manual operation. Slitting machines are widely used in packaging, printing, manufacturing and other fields.
Features
The winding is controlled by a servo motor. Automatic tension control.
Winding shaft: 2 one-inch air shafts; Two three-inch air shafts; Either the pneumatic shaft or the slip shaft is optional.
Cutter and knife rest: Square or round knives are available for selection; Or a pneumatic knife is optional.
Dust treatment device.
Deviation correction configuration is optional. Line tracking correction or edge tracking correction.
Optional parts
Square knife
Round knife
Pneumatic knife
Technical parameters
Width of the master roll | 1350mm in max. |
Outer diameter of the mother roll | 600mm in max. |
Weight of the master roll | 400kgs in max. |
Core diameter | 3" or 6" |
Finished product width | The minimum size of the square knife is 10mm, and that of the round knife is 35mm (optional). |
Outer diameter of the finished product | 350-450mm in max. (Optional) |
Diameter of the finished core tube | 1" or 3" |
Working speed | 350 meters/minute or 450 meters/minute (optional) |
Power | 8-12KW |
Voltage | 380V 3phase 50HZ |
Air pressure | 0.6-0.8 mpa |
knife | Square knife or round knife |
Machine weight | About 2,500 kilograms |
Machine size | 2260*1020*1830(mm) |

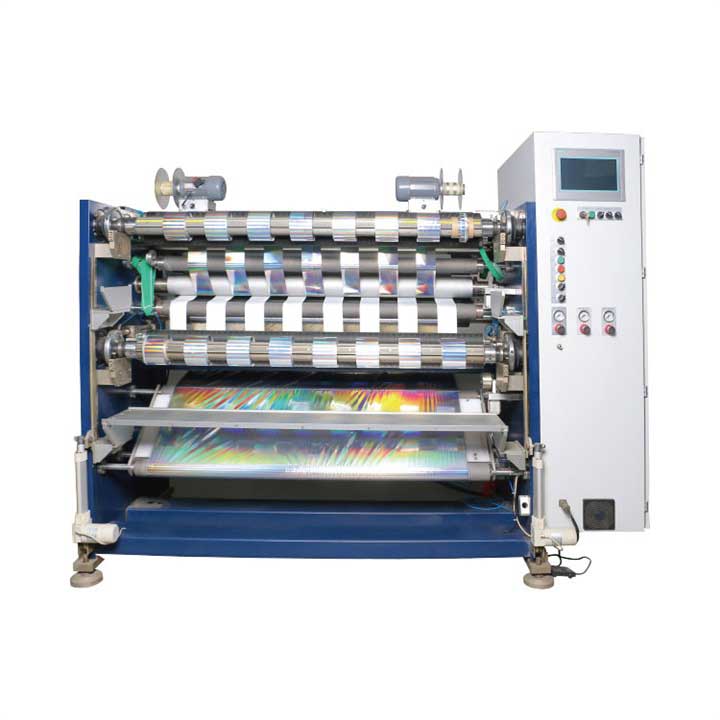

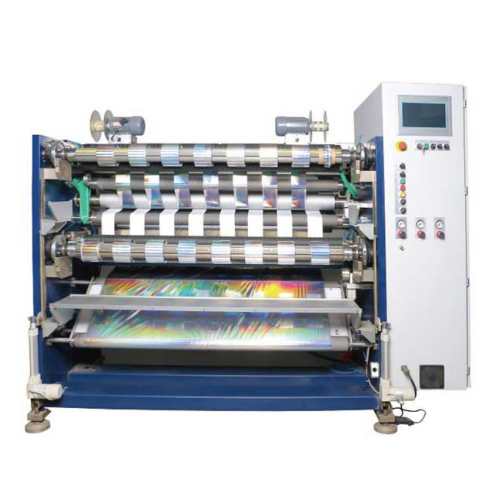

Picture for reference
