Protable Straight Type Oxy-fual Gas Cutting Machine
Introduction
“CG1-30H”portable gas cutter is the new product developed of our Company. The internal structure of the machine designed proper and the appearance surface designed in a good taste. We improve many technology and craft under the guidance of the customers. Because using the new material and request the processing technical strictly, the operability and durability and heat-insulating property have big advance.

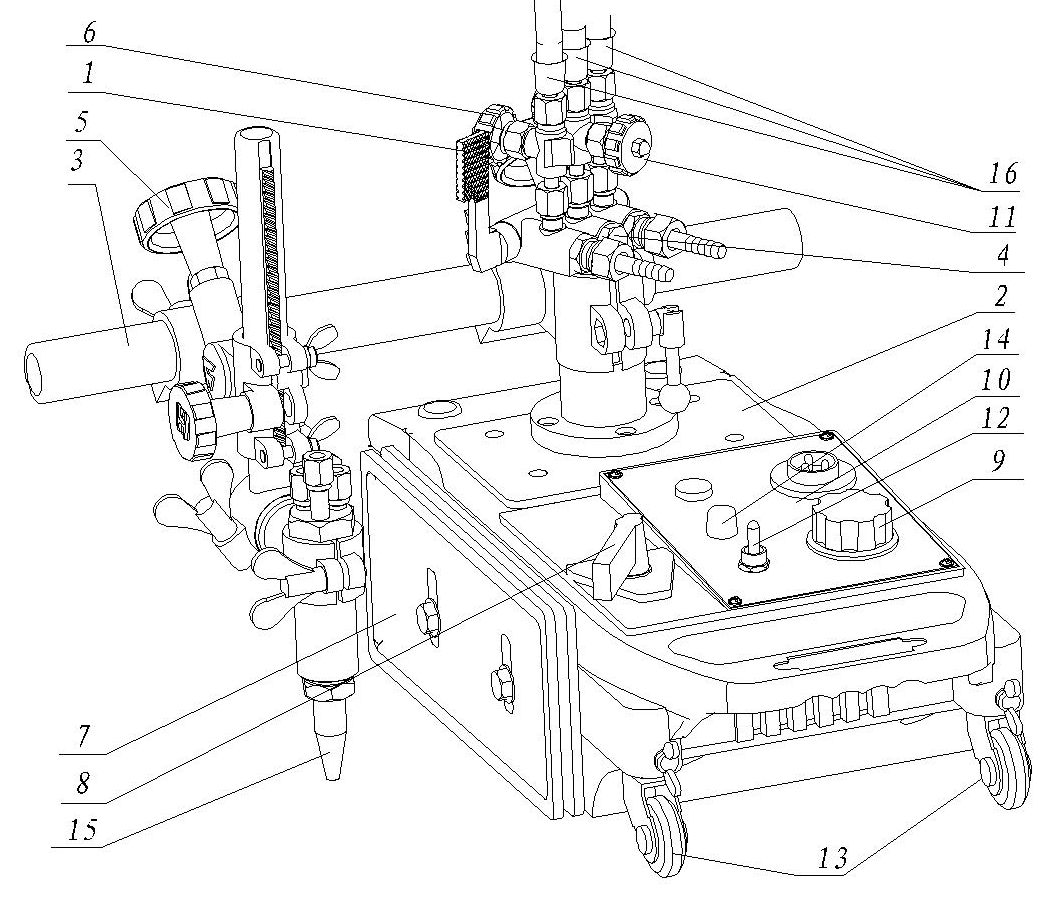

Structure
1. Fast on-off hand knob: The hand knob contains three steps: close, preheat, cut. When it is on the close step, the machine will close all gas.
2. Body
3. Traversing gear rack
4.Gas allotter
5. Traversing hand wheel
6. Fuel gas two-port valve: Modulate the bulk of the gas-flow rate
7. Thermal baffle: Prevent the heat from diffusing into the machine.
8. Clutch hand knob
9. Velocity modulation hand wheel: Modulate the speed of travel of the machine.
10.Power outlet
11. Preheat oxygen valve
12.Motor.Backward/Forword conversion switch
13. Universal wheel
14. Fuse
15.Tip
16.The hose transported the gas
Technical parameter
Weight | Body: 16kilograms Accessory: 7.8 kilograms |
Machine dimension | 435×210×240 mm (body) |
Speed control | SCR control |
Power source | AC 220V±10％ |
Cutting speed | 50-750mm/min |
Cutting thickness | 5-100 mm |
Bevel angle | 0～45° |
Cutting steel pipe diameter | 200mm-2000mm |
Tip | GO2( for acetylene) or GO3(for propane) |

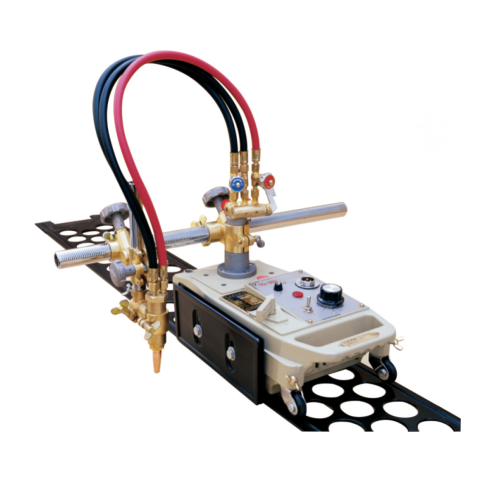

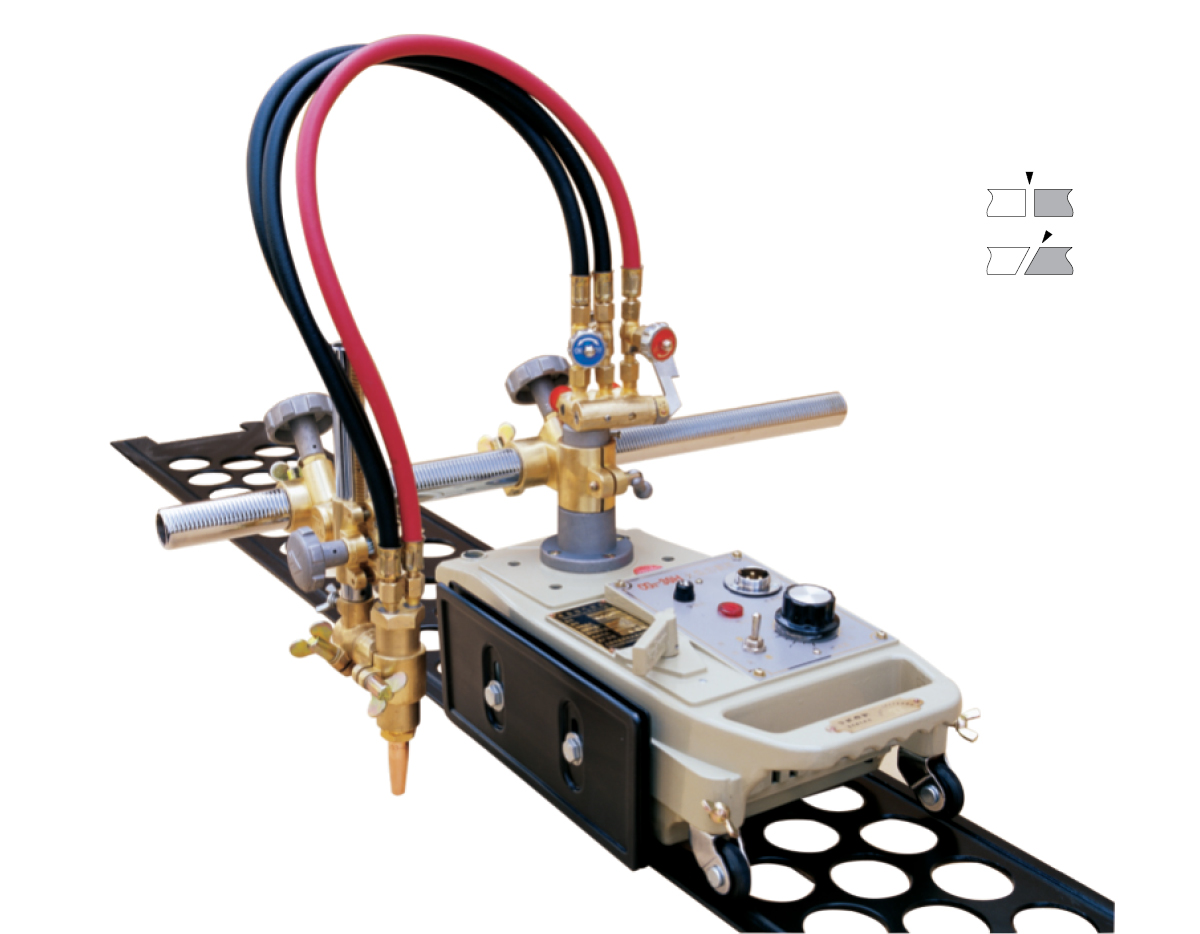

Picture for reference
