Shape Profiling Gas Cutter Machine For Max. 100mm Metal Thick Plate Cutting
Introduction
“HK-54D-II”profiling gas cutter is a kind of efficient and economic product. It is designed well and made of A-alloy. It can cut many shapes of pieces according to sample plate. The accuracy of cutting surface is good and the quality is high. The body is very small. So, it not only suits for company, but also suits for outdoor.

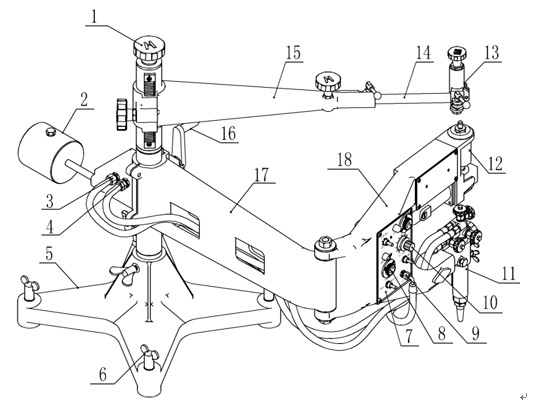

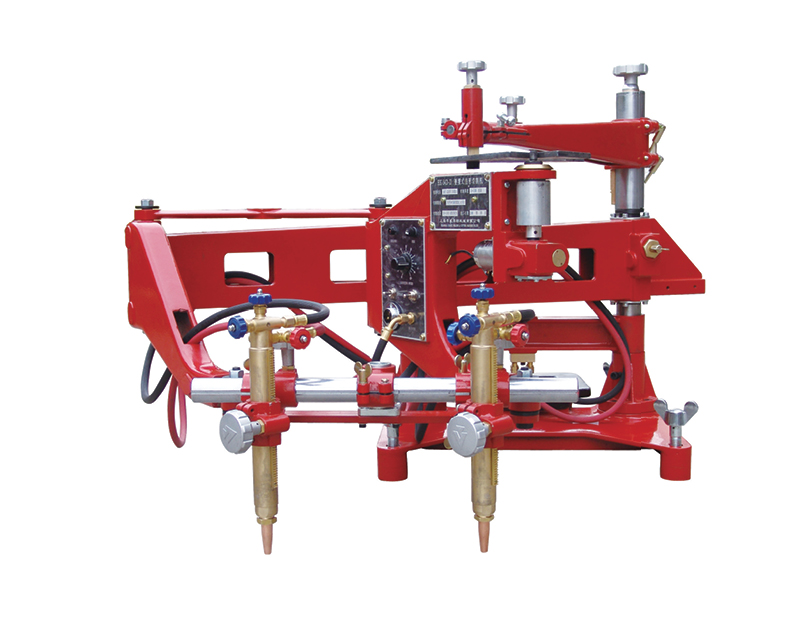

Structure
1.Lift wheel of arm: Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall.
2.heavy
3.oxygen inlet
4.gas inlet
5. base
6. Screw at the bottom: Make the machine horizontal on steel plate.
7.control panel
8. Outlet
9.pressure switch
10. Speed regulating knob：Increase the speed if you revolve it along “0” to “10”.
11. Torch
12.magnetic assembly
13. Frame of sample plate: To fix the sample plate and adjust the height of sample plate.
14.cross rack
15.arm
16.lifting handle of boom
17.boom
18.wishbone
Technical parameter
Weight（Body） | 85 KG |
Machine dimension | 1300 × 540 ×700 mm |
Power source | 220V 50HZ |
Cutting speed | 100～1000mm/min |
Cutting thickness | 3～100mm |
The diameter of cutting circle. | ø30～ø400mm |
Diameter of standard magnetic roller | 10mm |
Square size of cutting | 30mm×300mm, |
Motor | 55/ZYT DC110V24W 3600r/min |

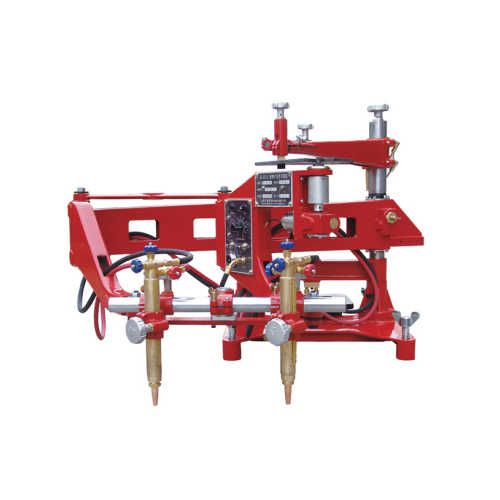

Picture for reference
