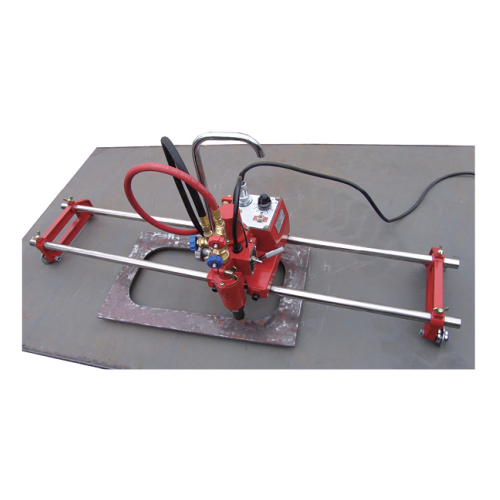

Small Portable Shape Gas Cutter Machine For Max. 50mm Thick Stainless Steel Cutting

Introduction

"HK-82-900" portable profiling gas cutting machine is a relatively advanced internal profiling cutting machine. This machine is easy to operate. The cutting nozzle is located at the center of the magnetic head. As it closely follows the template for tracking, it has high cutting accuracy and good surface cutting quality. The whole machine is lightweight. Due to the use of stainless steel pipes, the overall weight of the machine is effectively reduced, making it convenient to carry. This machine is specially designed for cutting large workpieces. The length of the track can be adjusted according to the requirements of the workpiece. This design thus broadens the cutting capacity and utilization efficiency.

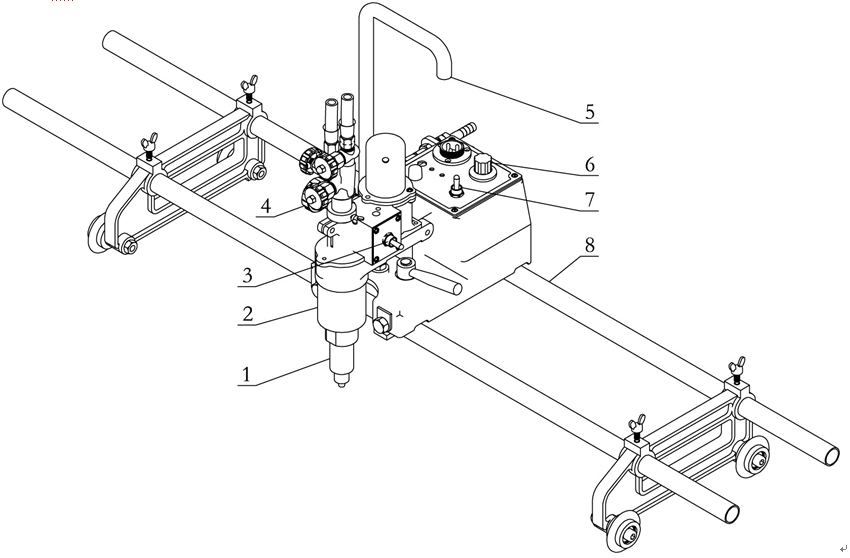

Structure

1. Magnetic head

2. Profiling head

3. Motor forward/reverse conversion switch: Controls the rotation direction of the magnetic roller

4. Torch adjustment handwheel

5. Handle

6. Speed control knob:

Rotating the knob along the "10" direction can speed up the movement of the device.

Moving in the "0" direction will slow down the movement.

7. Reverse switch

8. Guide Rail

Technical parameters

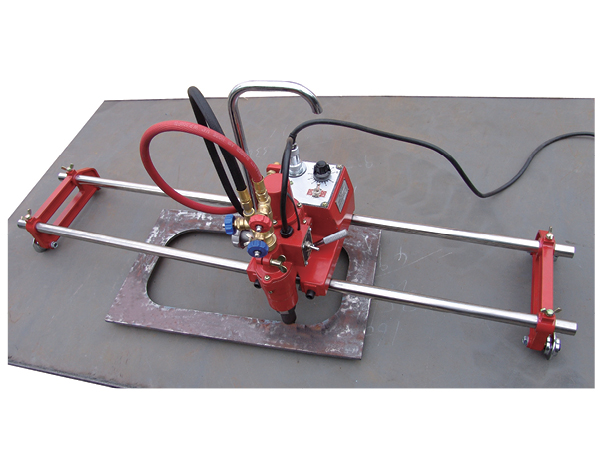

Picture for reference
