Semi-Automatic Hydraulic Cloth Fabric Cutting Machine
Introduction
This machine is mainly suitable for square, rectangular and straight strip shapes such as eyeglass cloths, samples, color cards, hanging cards, pocket cloths and eyeglass cases. The peripheral shapes are straight edges, sawtooth edges and S-shaped edges.
Features
It is mainly used for cutting fabrics, leather, cotton textiles, microfibers, paper and other materials. The peripheral shapes are divided into: straight edge, lace edge and sawtooth edge.
The width of the cutting surface is divided into: 800MM ----3500MM to meet the production requirements of different customers.
The four columns are lubricated with automatic oil supply, and the main shaft is equipped with automatic lubrication bearings to reduce wear and have a long service life.
It adopts hydraulic transmission, enabling the cutting knife to move up and down, featuring strong cutting force and low noise.
The single-line ray alignment cutter is adopted, which is accurate and error-free, reducing material loss.
Technical parameter
Pressure | 10T | 20T | 30T |
Cutter size | 800 mm | 1600 mm | 1800 mm |
Plate size | 800*500 mm | 1600*500 mm | 1800*500 mm |
Maximum stroke | 140 mm | 140 mm | 140 mm |
Maximum travel | 170 mm | 170 mm | 170 mm |
Power | 1.5KW | 2.2KW | 2.2KW |
Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Dimension | 1350*650*1400 mm | 2150*650*1430 mm | 2350*650*1480 mm |

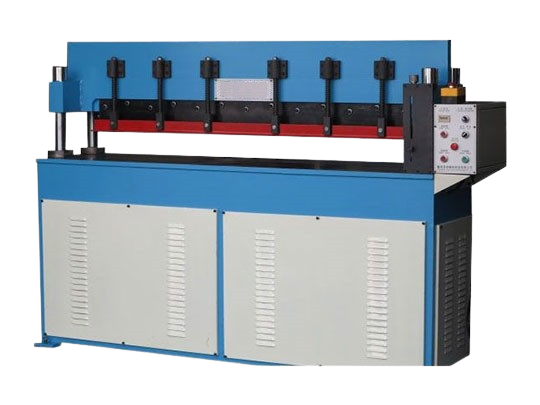

Picture for reference
