Double Sides Feeding Automatic Die Cutting Machine for PP Blister Packaging
Usage and Characteristics
1.It is mainly used for the cutting of blister, artificial leather, plastics, rubbers, nylon, paperboard, laminated materials, foam and various synthetic materials.
2.PLC control system guarantees easy operation and mass production.
3.Labor saving: Automatic Die Cutting Machine for PP Blister Packaging only needs two workers to operate it.
4.Small motor,small oil pump, electric and oil saving.The machine is equipped with lubricating system to lessen wear and prolong service life.
5.24V low power special control system.
6.Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7.Products with different heights can be manufactured at same time.
8.Products of special specifications are available on request.
Machine Advantages
1.Double connecting rod balance and hydraulic drive. All moving parts have auto lubricating system, prolonging the machine service life and enhancing cutting precision.
2.The upper pressing board comes down quickly and when it is near the cutting mould, it will slow down automatically. Thus, the upper side and the lower side of the materials will hardly have any size difference.
3.The specially designed machine structure avoids oil leakage.
4.Flywheel energy storage tech helps realize high pressure cutting, saving power. The oil temp will not rise.
5.Stroke setting mechanism can easily and precisely set the cutting height according to different cutting moulds.
6.Main sealing elements are made in Germany. Key hydraulic parts and electrical appliances are imported and have long service life.
7.After high frequency quenching, the excircle surface of cylinder rod will be hard chrome plated, prolonging the service life of the machine.
8.The hydraulic system adopts auto oil adding speed enhancing cylinder. When working, it lowers rapidly and the hydraulic pump is in the state of unloading. It produces less heat and can work continuously for a long time.
Main Technical Data(Customizable)
Model | XCLP3-400 | XCLP3-500 | XCLP3-600 | XCLP3-800 | XCLP3-1000 |
Cutting Force | 40T | 50T | 60T | 80T | 100T |
Tension Distance(mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
Cutting Area(mm) | 1400*610 | 1400*800 | 1400*900 | 1400*900 | 1400*900 |
Main Motor Power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 |
G.W(kg) | 2500 | 4000 | 6000 | 7300 | 9000 |

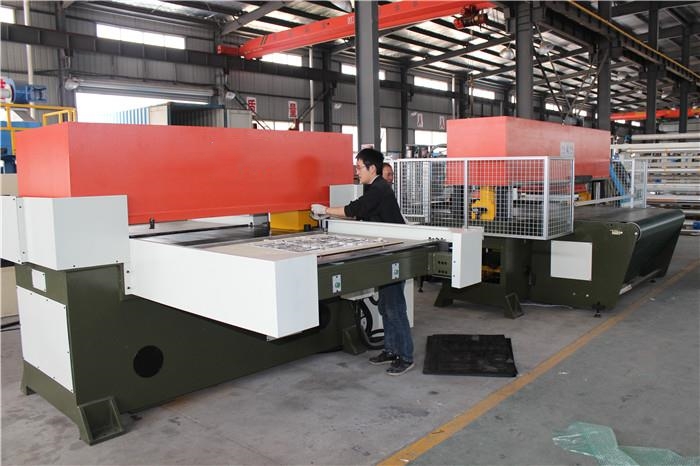

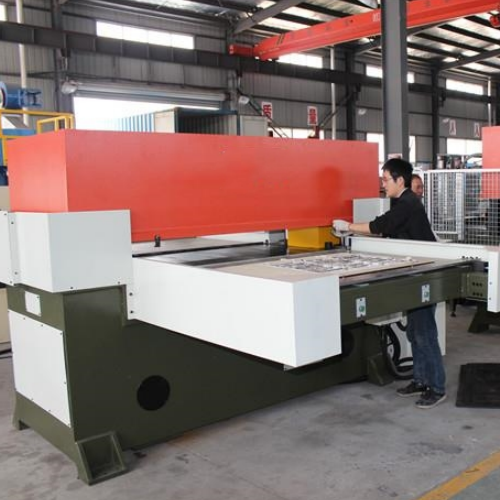

Picture for reference
