Silicon Steel Sheet Laser Cutting Machine
Introduction

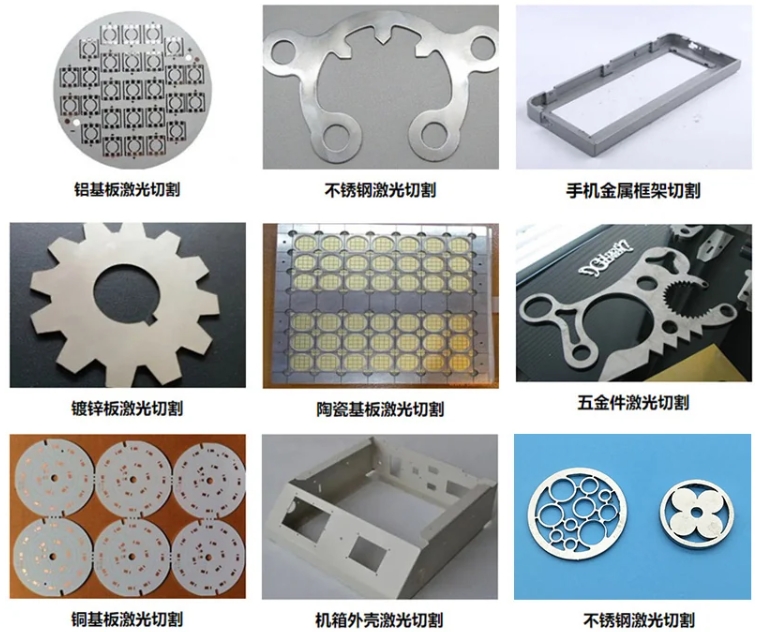

This Laser Machine used for all kinds of sheet metal, galvanized plate, copper plate and aluminum plate, micro-precision metal scribing, cutting and punching production. Mainly used in LED, precision machinery, semiconductor control devices, 3C parts industry.
Technical parameters
Model | NEM-SG-600 |
Laser power | 100/150/200/250/300/500 W optional |
Laser type | Fiber laser |
Cutting speed | 5000-25000 mm/s |
Working area | 600*600 mm |
Positioning accuracy | ±0.01 mm |
Working humidity | 5-95% Non-condensing water |
Supported format | DXF/PLT/BMP/AI/HML |
Cooling system | Air-cooled/water-cooled protection system |
Operating temperature | 1℃ -45℃ |
Working voltage | 220V±10% 50Hz (60Hz) |
Size | 1800*1430*1850 mm |

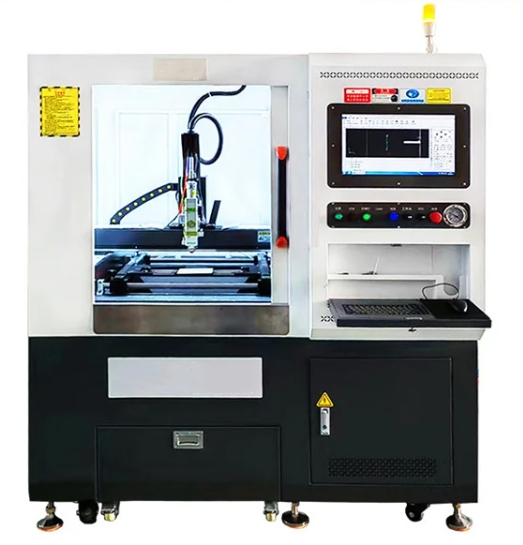

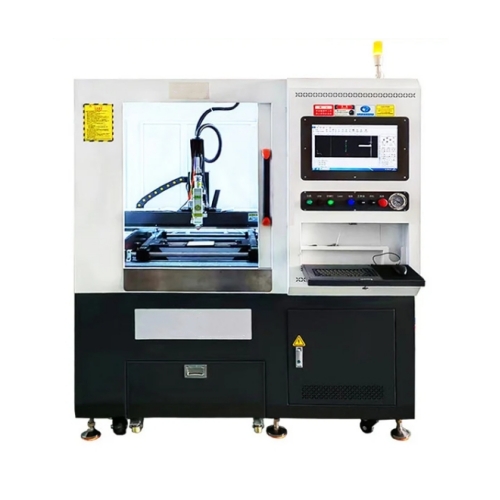

Picture for reference
