Metal Stainless Steel Laser Cutting Machine
Introduction
CW-1530J large high-precision cutting bed metal laser cutting machine is mainly used in sheet metal processing, stainless steel, carbon steel and other materials; Perforation and special-shaped cutting of metal pipe fittings, cutting of galvanized sheet, electrolytic plate and other alloy materials (cutting depth and size depending on the specific situation), other metal and some plastic materials cutting. Laser cutting precision is high, stability is good, no need to open the mold.
Technical parameters
Model | NEM-CW-1530J |
Working area | 1500*3000 mm |
Laser power | 700-2000 W optional |
Cutting thickness | SS 0.5-5mm Carbon steel 0.5-14 mm (based on material) |
Laser type | High-energy fiber laser generator |
Cooling type | Water cooling system |
Cutting speed | 0-15 m/min (based on materials) |
Laser energy control | 0-100% software setting |
Auxiliary air | Nitrogen/oxygen/ high pressure air |
Positioning accuracy | ≤+0.05mm |
Control system | Cypcut |
Graphic format supported | DST/PLT/BMP/DXF/DWG/AL/LAS |
Software supported | Tajima/coreldraw/photoshop/autocad and etc. |
Transmission | Y aixs gear and rack and double drive X axis imported gear and rack |
Accessories | Exhaust fan and pipe |
Power | AC 110V/220V ±10% 50/60 Hz |
Working condition | Temp.: 1-45C, humidity: 5-95% |
Laser head cutting | Follow-up auto focus system, professional laser head |
Optional configuration | Knife/sawtooth work table, other customized work table |
Weight | 3500-5000 KG |
Dimensions | 2700*4600*1500 mm |

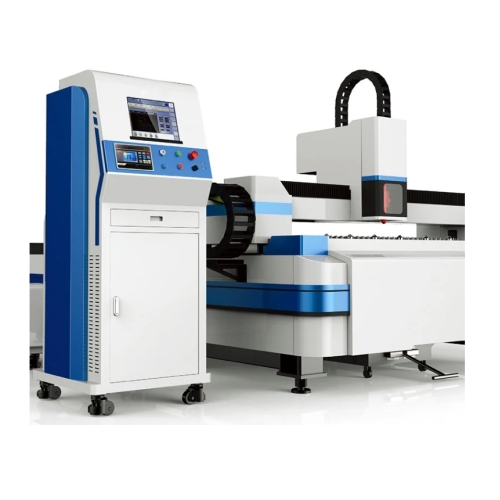

Picture for reference
