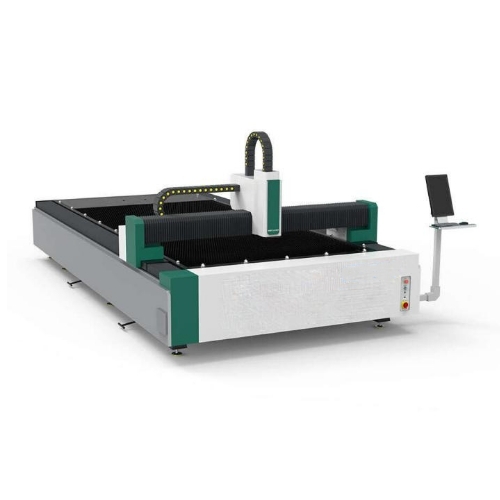

1

Laser

1.1

12000W fiber laser

1 set

Chuangxin

1.2

Laser power supply

2

External optical path and cutting head

2.1

Special laser cutting head

1 set

Jiaqiang

3

Machine tool mainframe

3.1

Machine tool bed

1 set

Independent research and development

3.2

X and Y-axis gear racks

1 set

Italian PEK

3.3

Linear guide rail

1 set

"Shangyin

3.4

Servo motors and drivers

4 sets

German Luo Yuan

3.5

Reducer

3 sets

Faston

3.6

Airway control

1 set

SMC of Japan

3.7

Cable

1 set

German De Rou

3.8

Electrical components

1 set

Schneider, France

3.9

Machine tool accessories

1 set

Independent research and development

4

Numerical control and software systems

4.1

Numerical control system (including control software)

1 set

Jiaqiang

4.2

Computer mainframe

1 set

A well-known domestic brand

5

Standard Annex

5.1

Workbench

1 set

Independent research and development

5.2

Precision chiller unit

1 set

Wuhan Hanli

Laser type

Fiber laser

Laser working medium

YVO4

Laser wavelength

1170 nm

X-axis travel

3000mm

Y-axis travel

1500mm

Z-axis travel

120mm

Effective cutting range

3000×1500mm

Axial positioning accuracy of the worktable

≤±0.03 mm /m

The repeat positioning accuracy of the workbench

≤±0.03 mm /m

Maximum positioning speed

120m/min

Maximum load capacity of the workbench

≥800kg

Phase number

3

Rated voltage of power supply

380V3 phase

Frequency

50Hz

Total power supply protection grade

IP54

Maximum cutting thickness

Carbon steel 40mm

Stainless steel 40mm

Aluminum alloy 8mm

Brass 5mm

1

Overall input power: 12KW

2

Power supply requirements :(It is recommended to use a voltage stabilizing power supply

Rated output voltage: 380V/50Hz

Voltage stability: +5%

3

Compressed air supply device (It is recommended to configure one air storage tank and a refrigerated dryer)

Volume: 1 m ³

Rated pressure: 1.5Mpa

Air flow rate: 1 liter per minute

4

Auxiliary gas
