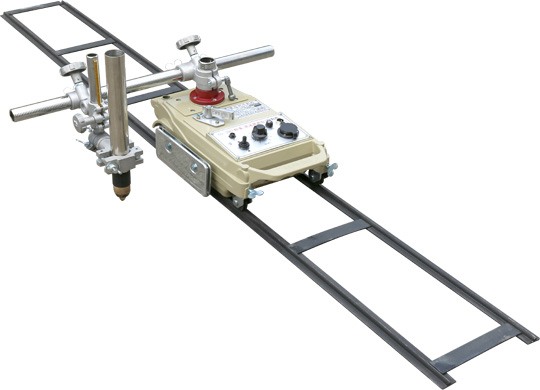

Straight High Speed Plasma Cutter Machine For Non-Ferrous Metals Cutting

Introduction

“CG1-30K” flame cutter is one of main products of our company. It is designed well and beautiful. We adopt many advices of customers and hold technical seminars. Then, we do technical innovations and optimizations for it. This machine adopts new material, which improves the serviceability, durability and heat-insulating property. This machine can be matched with plasma torch to cut stainless steel and non-ferrous metals. It is equipped with interface of arcing. It can control the arcing of plasma easily. The machine is suitable for straight cutting. It also can do circle cutting (＞ø200mm). The speed of it is the 3-4 times of general carriage. It meets with the need of plasma sheet cutting. The machine can be used on the fields of shipbuilding, bridge, metallurgy, heavy machinery and so on.

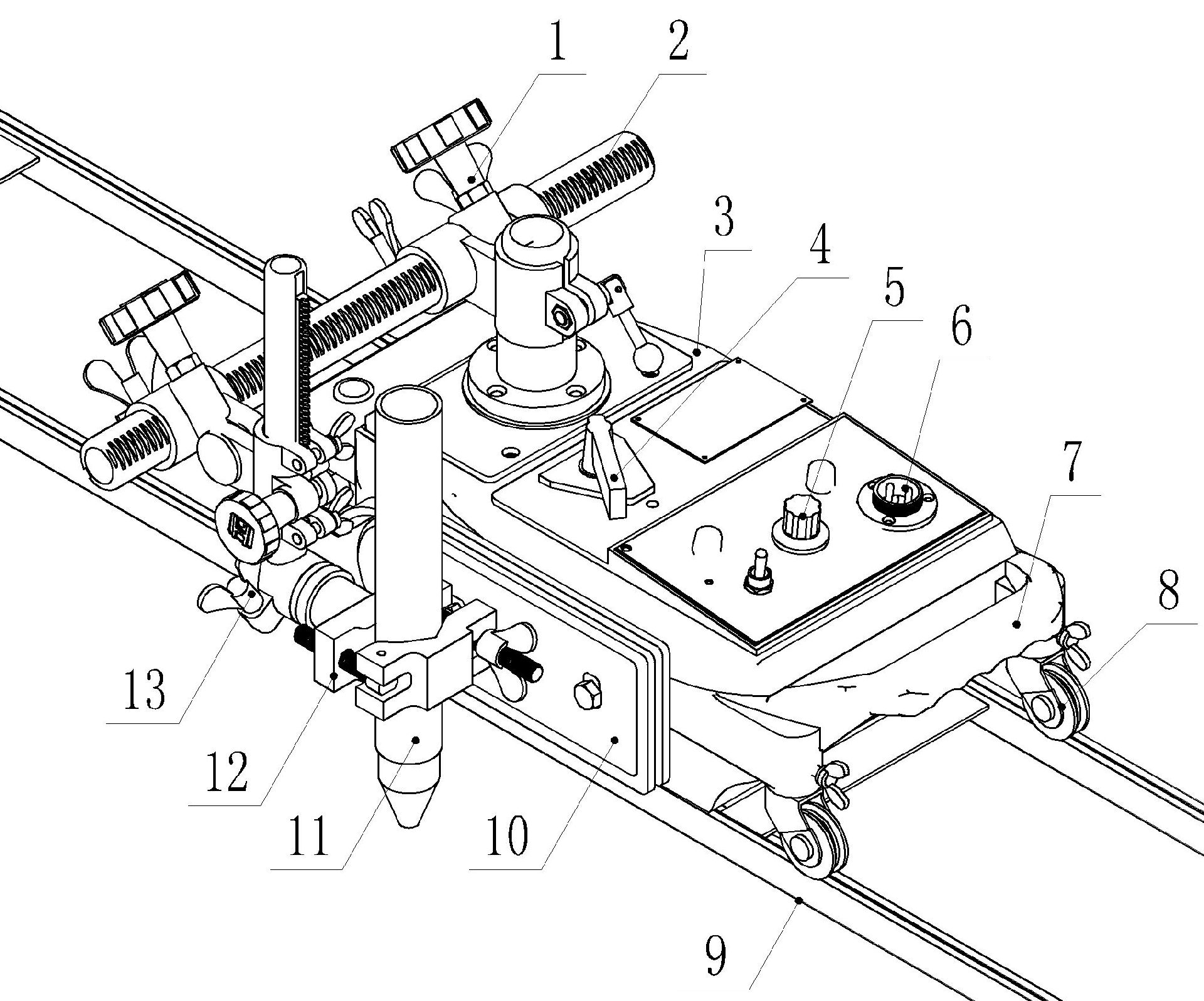

Structure

1.left and right moving seat

2.cross moving rack

3.main body

4.clutch lever：Align the end of lever with  “STOP” is detach.Align the end of  lever with “START” is combination.

5.Speed control knob: The speed is increased from “0”to“10”; The speed is decreased from

“10”to“0”

6.power outlet

7.portable handle

8.universal wheel

9.guide

10.insulation board：prevent the heat produced by cutting from going into the inner of machine.

11.plasma torch

12.plasma holder

13.up and down moving assembly of torch

Technical parameters

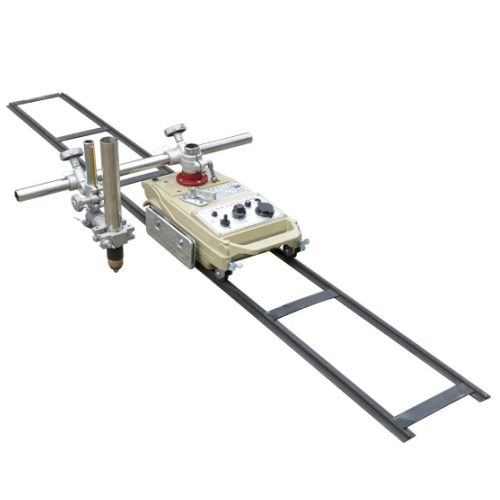

Picture for reference
