Straight Line Track Guide Flame Gas Cutter For Stainless Steel Oxy-Fuel Cutting
Introduction
“CG1-30” flame cutter is one of main products of our company. It is designed well and beautiful. We adopt many advices of customers and hold technical seminars. Then, we do technical innovations and optimizations for it. This machine adopts new material, which improves the serviceability, durability and heat-insulating property.
Structure

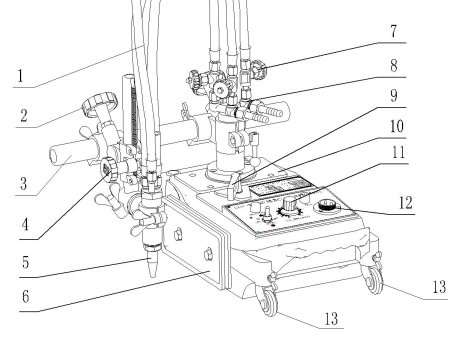

1.Hose：The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen.
2. Cross hand wheel：To adjust the horizontal distance of torch
3. Cross gear rack
4．Vertical adjusting hand wheel of torch
5．Tip
6.Thermal baffle：To prevent the heat diffusing into the inner of machine.
7. Fuel gas two-port valve：To adjust gas-flow rate.
8. Gas distributor.
9．Clutch hand knob: “STOP” is parting. “START”is combination.
10. Body
11. Speed controller : Increase the speed from “0”to“10”Decease speed from “10” to “0”.
12. Outlet
13. Universal wheel
Technical parameters
1.Weight | 16 kg |
Accessory | 7.8 kg |
2. Machine dimension | 435×210×240mm |
3. Speed control | silicon control |
4. Power source | AC 480V±10％ 50HZ |
5. Cutting speed | 50～750/mm/min |
6. Cutting thickness | 5-100mm |
7.Groove angle | 0-45° |
8.Diameteral of cutting circle | ø200-ø2000mm |
9.Tip | G02(acetylene),G03(propane) |
10.Motor | DC 110V 50HZ 30W 4200r/min |

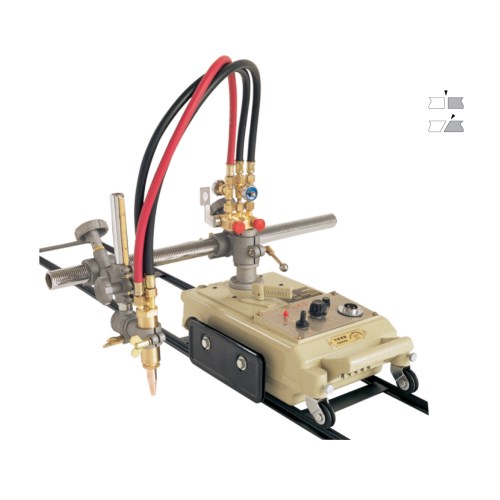

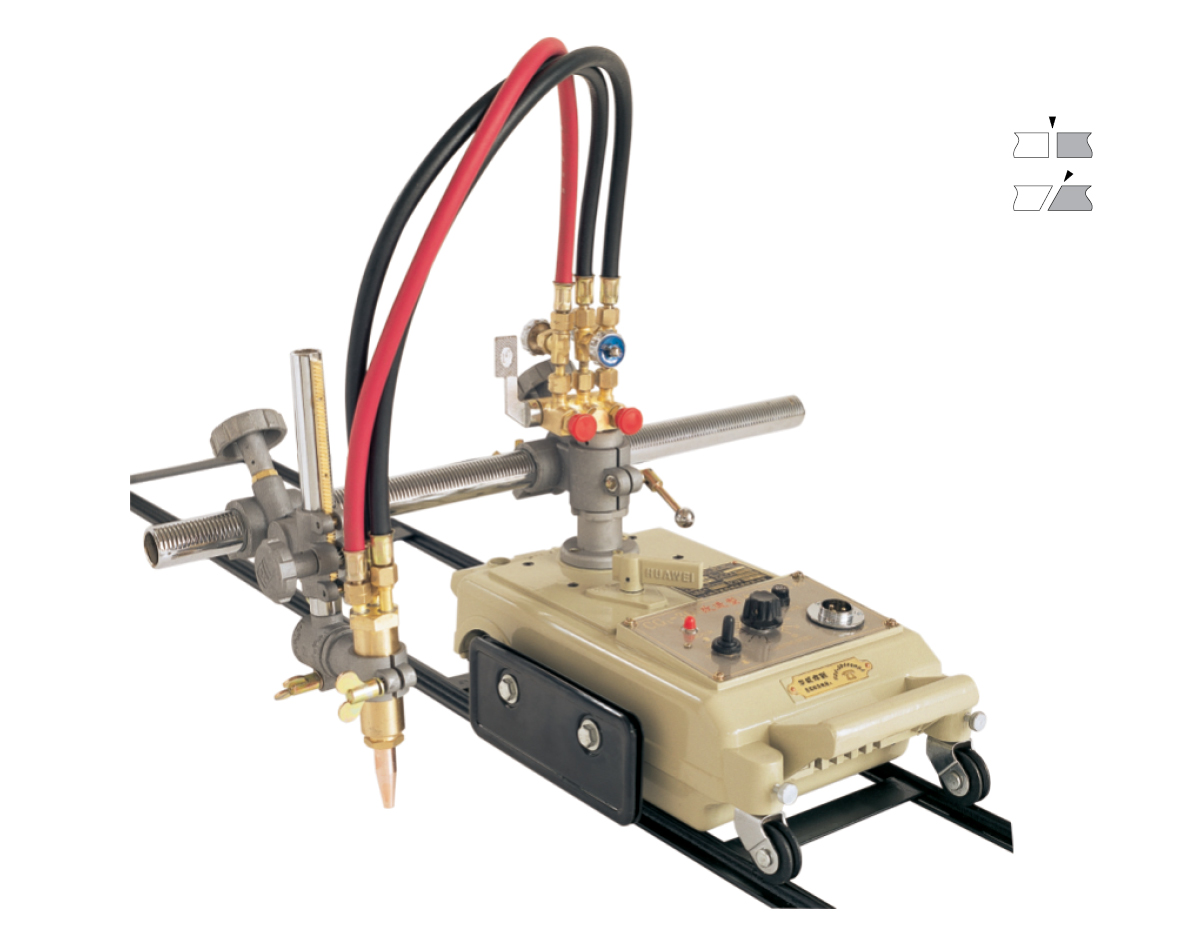

Picture for reference
