Vertical Circular Oxy-Fuel Flame Cutter Machine For 100mm Thick Steel Plate Cutting
Introduction
“CG2-600II” semiautomatic cutter is made of A-alloy. The machine has two groups of speed change. It uses SCR to control speed. There are roller wheels on bottom of body. So, it is easy to move. The reducing box is used to change the speed to make the axis revolve. You can adjust the radius of cutting circle. It can cut on vertical steel plate and inclined plane. The machine improves efficiency, assures the quality and decreases the working strength.
Structure

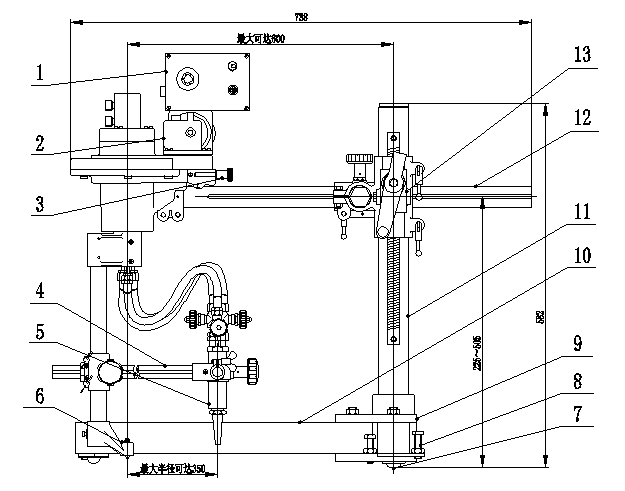

1. Control box
2. Gearbox
3. Clutch handle
4. Radius bar
5. Torch
6. Central seat of cutting circle
7. Roller wheel of bed
8. Screw of bed
9. Bed
10. Square steel of bed
11. Upright column
12. Cross moving gear rack
13. Lifting seat
Technical parameter
1. Machine dimension | 1200×340×700（Length×Width×Height） | ||
2. Weight（Body） | 38 KG | ||
3.Cutting range | Diameter of cutting circle | Inner circle: Ø100 to Ø500 Outer circle: Ø200 to Ø600 | |
Thickness of steel plate. | 6～60mm | ||
Cutting speed | 0.2～6.0 r.p.m | ||
Cutting accuracy | <1mm/1r The round error is below 1mm/r. The roughness of cutting surface is | ||
4.Motor | ZTY-261 DC permanent magnetic motor | ||
5. Rotational speed | 3600 r.p.m. | ||
6. Power | 30W | ||
7.Voltage | 110V | ||
8.Control case | Power | AC 220V±10％ 50HZ | |
Fuse | 1A | ||

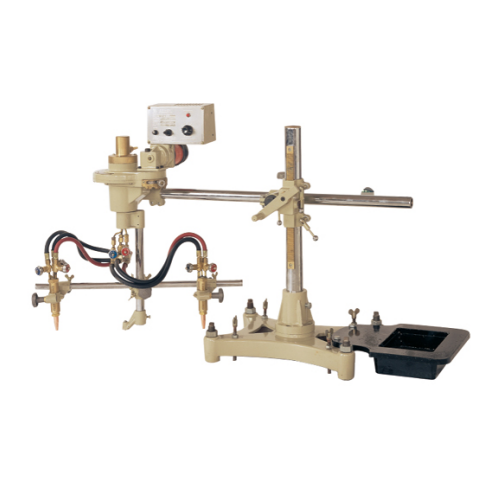

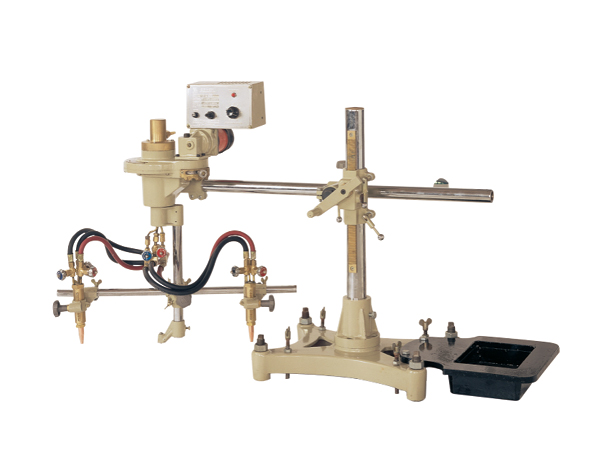

Picture for reference
